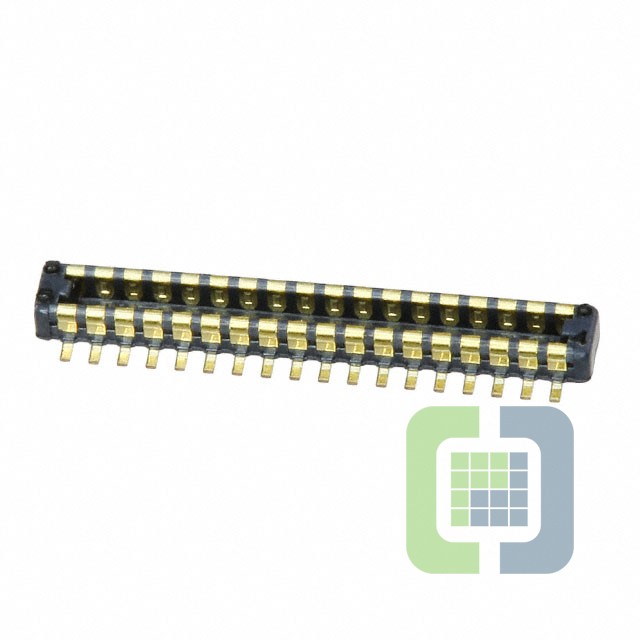

WP9-P032VA1-R500
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 32POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WP9-P032VA1-R500 Datasheet
-
ECAD Model
- Share
In Stock: 675
Can ship immediately
Pricing:
- 1$2
- 3,000$1.036
Quote It
Technical Details
- Series:WP9
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:32
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:0.8mm
- Height Above Board:0.026" (0.65mm)
