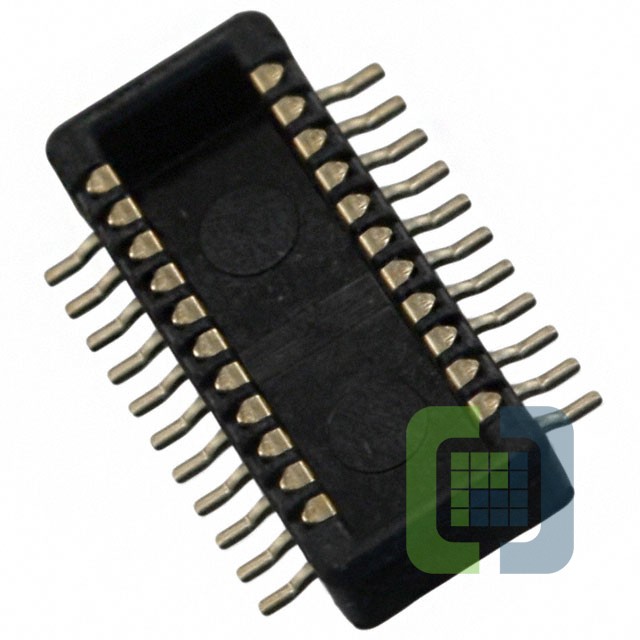

0555600228
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 22POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 0555600228 Datasheet
-
ECAD Model
- Share
In Stock: 437
Can ship immediately
Pricing:
- 1$2.32
- 2,000$1.41636
- 4,000$1.37344
- 6,000$1.31335
Quote It
Technical Details
- Series:SlimStack 55560
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:22
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:1.5mm
- Height Above Board:0.046" (1.16mm)
