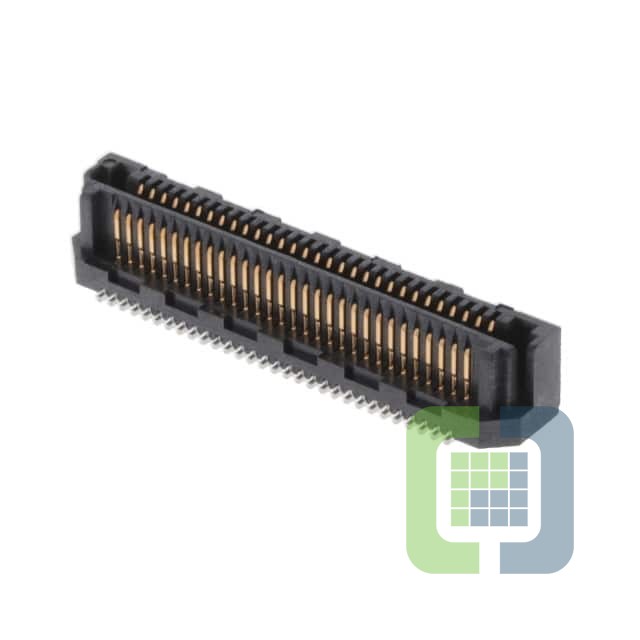

LSS-130-01-L-DV-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 60POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSS-130-01-L-DV-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 217
Can ship immediately
Pricing:
- 1$5
- 125$5
- 250$4.41176
- 625$4.11765
- 875$3.97059
- 1,250$3.82353
- 3,125$3.67647
Quote It
Technical Details
- Series:Razor Beam™ LSS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:60
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:6mm, 7mm, 9mm
- Height Above Board:0.169" (4.30mm)
