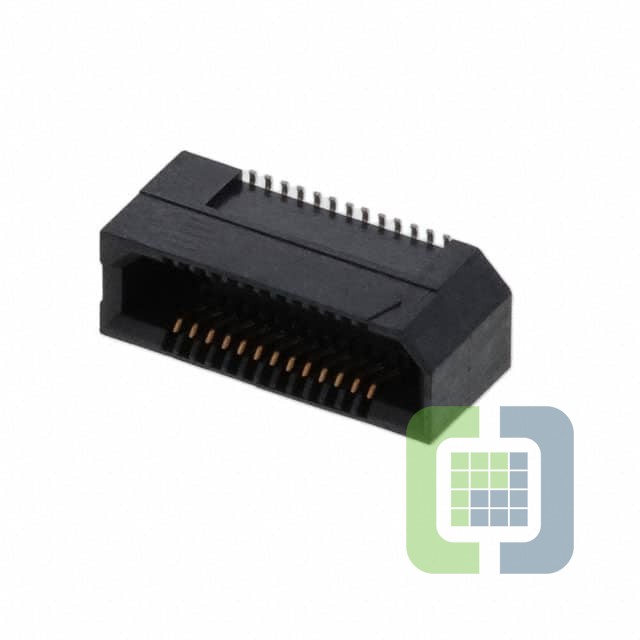

ERF8-013-07.0-S-DV-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET 26POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
- 1$6.02
- 400$4.267
- 800$3.765
- 1,200$3.514
- 2,000$3.4387
- 2,800$3.3383
Quote It
Technical Details
- Series:Edge Rate™ ERF8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Socket, Outer Shroud Contacts
- Number of Positions:26
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:9mm, 12mm, 15mm, 16mm, 22mm
- Height Above Board:0.285" (7.24mm)
