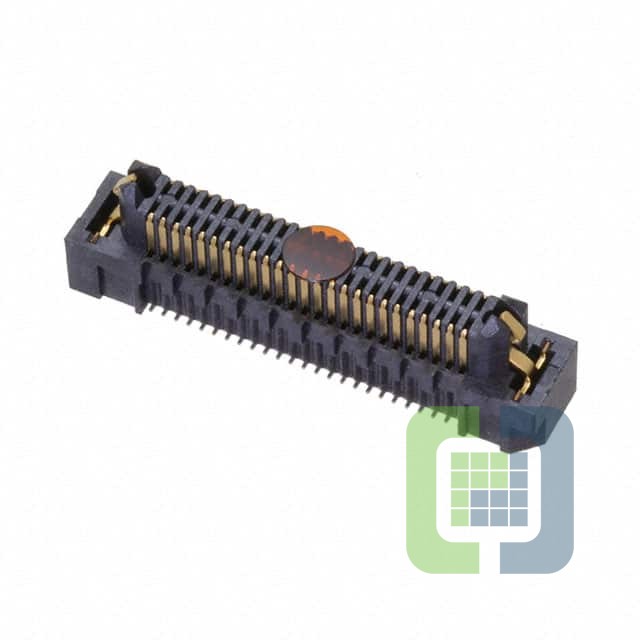

ERM8-025-05.0-L-DV-L-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 50POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERM8-025-05.0-L-DV-L-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$6.98
- 250$4.21952
- 500$3.9285
- 750$3.783
- 1,250$3.71025
- 1,750$3.6375
- 2,500$3.56475
Quote It
Technical Details
- Series:Edge Rate™ ERM8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Center Strip Contacts
- Number of Positions:50
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Latches, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 12mm, 15mm
- Height Above Board:0.351" (8.91mm)
