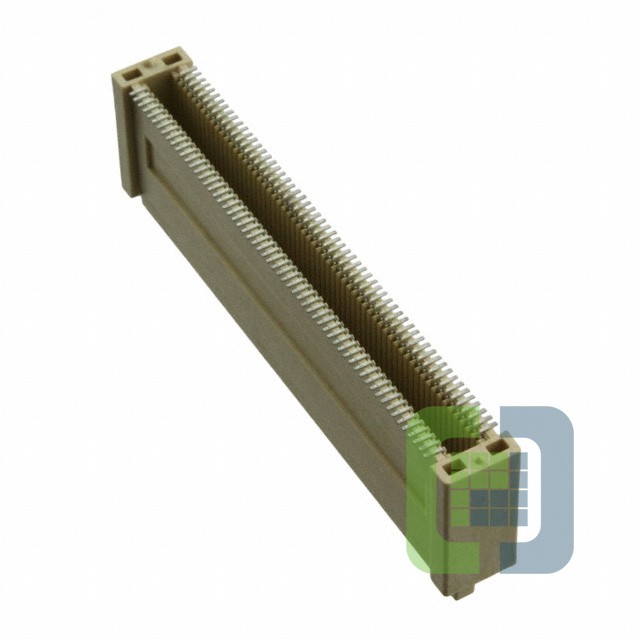

5-1735480-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5-1735480-5 Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
- 1$11.16
- 16$10.70927
- 32$9.81674
- 56$9.37051
- 104$9.14732
- 256$8.2549
- 504$7.80867
- 1,000$7.00549
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:8.00µin (0.203µm)
- Mated Stacking Heights:17mm
- Height Above Board:0.620" (15.75mm)
