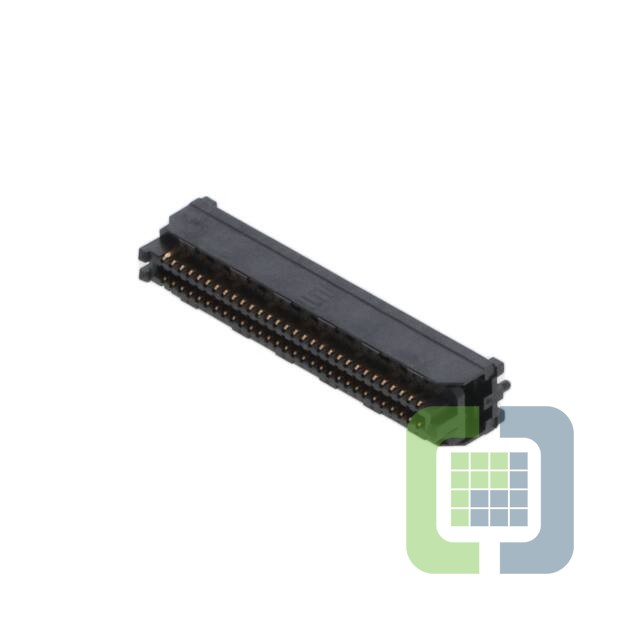

SEAM-30-07.0-S-04-2-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 120P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAM-30-07.0-S-04-2-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 242
Can ship immediately
Pricing:
- 1$20.12
- 125$12.454
- 250$12.21452
- 625$11.97501
Quote It
Technical Details
- Series:SEARAY™ SEAM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:High Density Array, Male
- Number of Positions:120
- Pitch:0.050" (1.27mm)
- Number of Rows:4
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:12mm, 13mm, 13.5mm, 14.5mm
- Height Above Board:0.417" (10.60mm)
