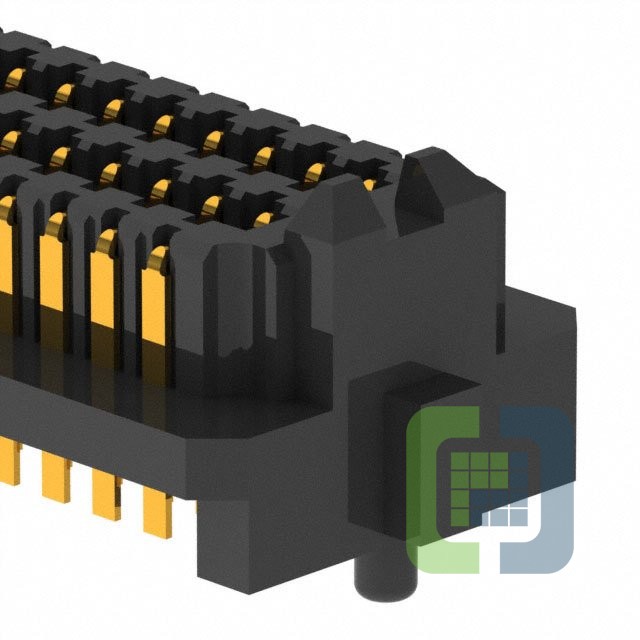

SEAM8-40-S05.0-S-06-2-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HD ARRAY PLUG 240P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet SEAM8-40-S05.0-S-06-2-K Datasheet
-
ECAD Model
- Share
In Stock: 221
Can ship immediately
Pricing:
- 1$26.35
- 10$25.40698
- 25$24.46559
- 50$23.9949
- 100$23.52435
- 250$23.05385
- 500$22.58337
Quote It
Technical Details
- Series:SEARAY™ SEAM
- Package:Strip
- Part Status:Obsolete
- Connector Type:High Density Array, Male
- Number of Positions:240
- Pitch:0.031" (0.80mm)
- Number of Rows:6
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:10mm
- Height Above Board:0.297" (7.54mm)
