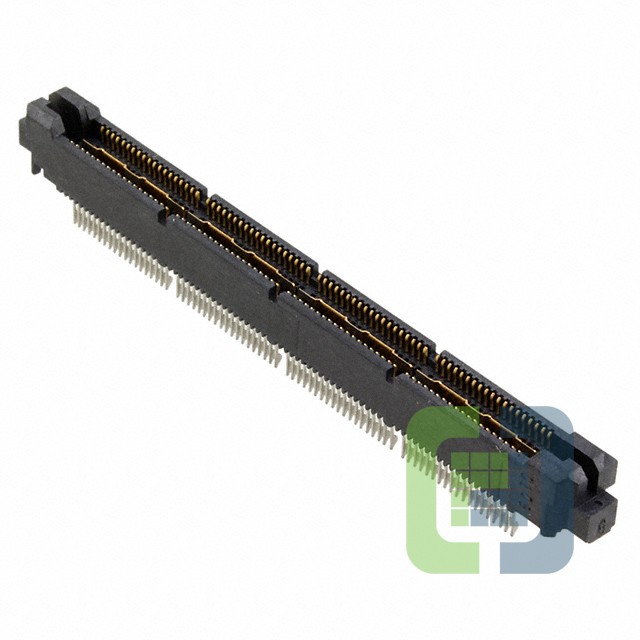

767006-4
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 152POS EDGE MNT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 767006-4 Datasheet
-
ECAD Model
- Share
In Stock: 205
Can ship immediately
Pricing:
- 1$76.59
- 16$72.08045
- 32$69.82786
- 56$65.32285
- 104$61.71876
Quote It
Technical Details
- Series:MICTOR
- Package:Tube
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:152
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Board Edge, Straddle Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:-
- Height Above Board:0.251" (6.38mm)
