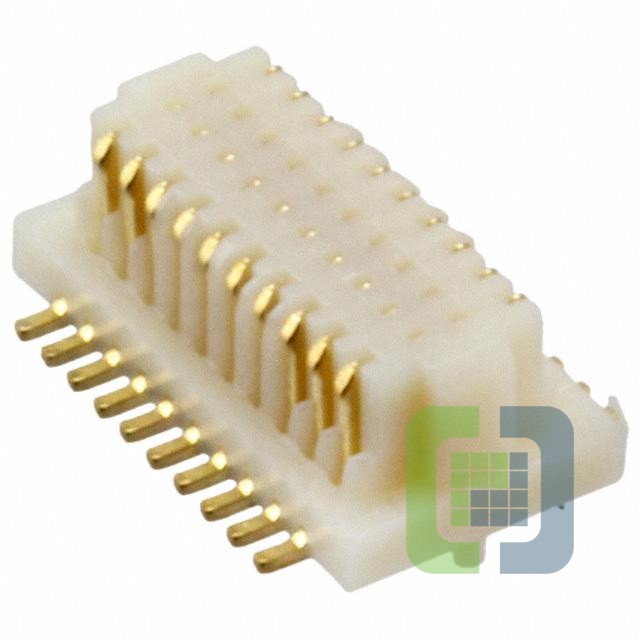

20R-JMCS-G-B-TF(S)
JST
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 20R-JMCS-G-B-TF(S) Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$0.85
- 2,500$0.42653
- 5,000$0.41182
- 12,500$0.38241
Quote It
Technical Details
- Series:JMC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:-
- Height Above Board:0.091" (2.30mm)
