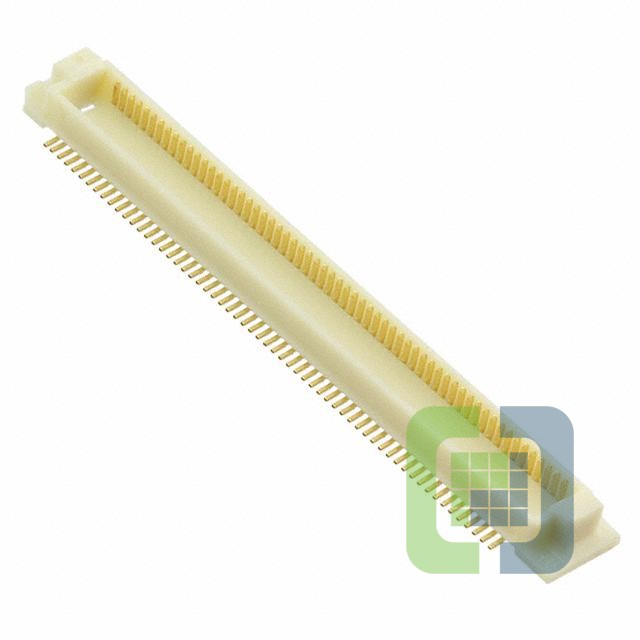

FX8-120P-SV(91)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FX8-120P-SV(91) Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
- 1$4.37
- 12$4.19502
- 36$3.84566
- 60$3.6708
- 108$3.496
- 252$3.059
Quote It
Technical Details
- Series:FunctionMax™ FX8
- Package:Tube
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.024" (0.60mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:3mm
- Height Above Board:0.112" (2.85mm)
