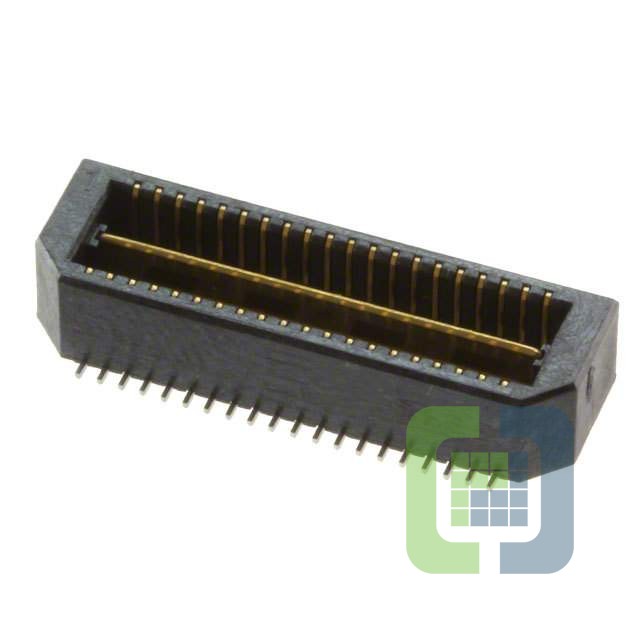

QTE-020-01-F-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QTE-020-01-F-D-A Datasheet
-
ECAD Model
- Share
In Stock: 140
Can ship immediately
Pricing:
- 1$6.62
- 10$6.04626
- 25$5.75835
- 96$5.18249
- 192$4.60669
- 288$4.17479
- 576$3.88688
- 1,056$3.67095
- 2,592$3.52698
Quote It
Technical Details
- Series:Q Strip® QTE
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.168" (4.27mm)
