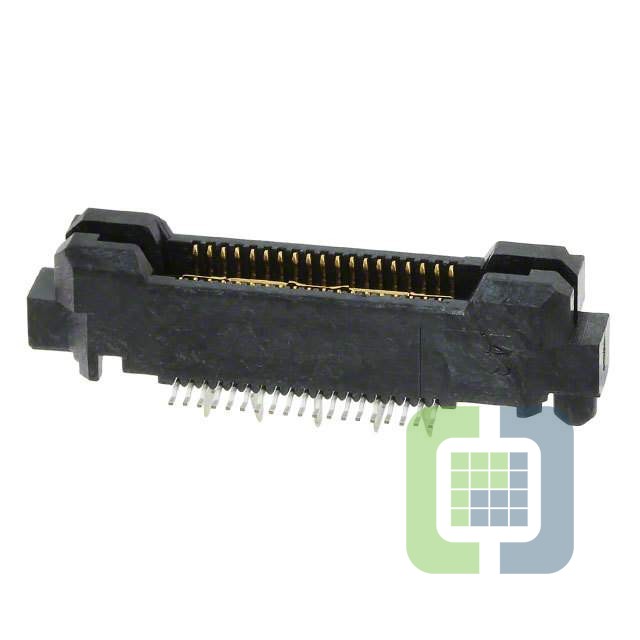

5767056-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 38P SMD PALLAD-NICKEL
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5767056-1 Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
- 1$21.43
- 21$19.34506
- 42$18.53436
- 63$17.37603
- 105$16.79682
- 252$15.87005
- 504$15.4067
Quote It
Technical Details
- Series:MICTOR
- Package:Tube
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:38
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Palladium-Nickel
- Contact Finish Thickness:5.00µin (0.127µm)
- Mated Stacking Heights:6.6mm, 15.62mm
- Height Above Board:0.251" (6.38mm)
