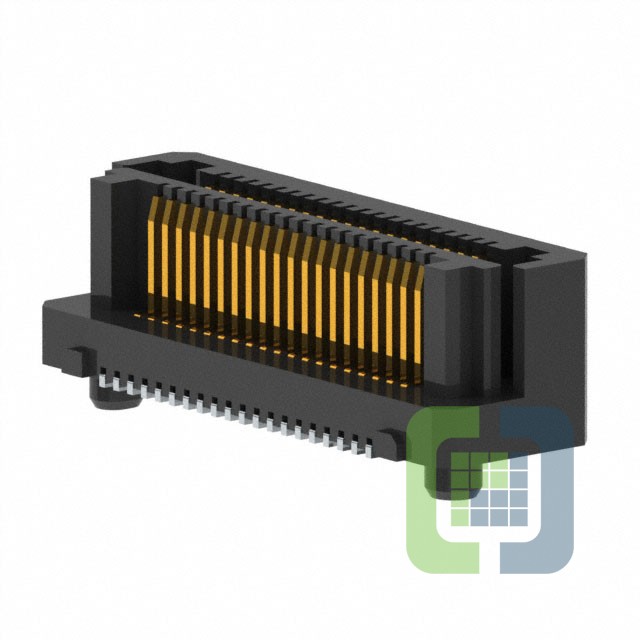

LSHM-120-03.0-F-DV-A-N-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet LSHM-120-03.0-F-DV-A-N-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
- 1$5.58
- 750$3.01051
- 1,500$2.84325
Quote It
Technical Details
- Series:Razor Beam™ LSHM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:40
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:5.5mm, 6mm, 7mm, 9mm
- Height Above Board:0.175" (4.45mm)
