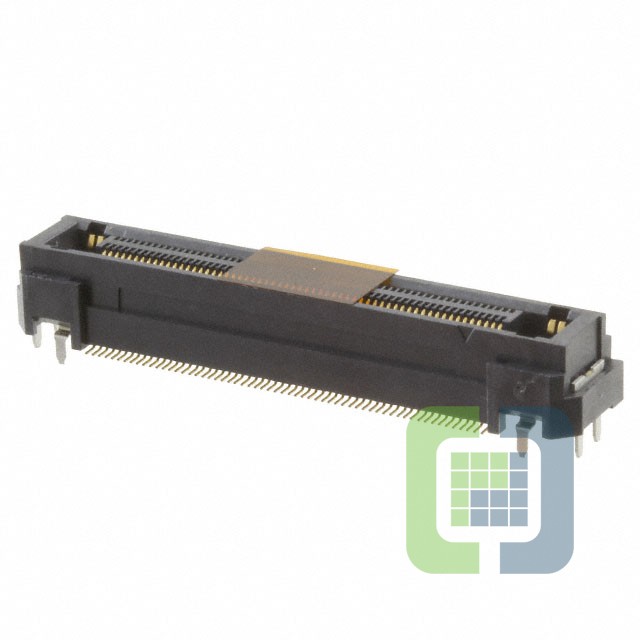

FX23-120S-0.5SV
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FX23-120S-0.5SV Datasheet
-
ECAD Model
- Share
In Stock: 220
Can ship immediately
Pricing:
- 1$5
- 10$4.8
- 25$4.4
- 50$4.2
- 100$4
Quote It
Technical Details
- Series:FunctionMax™ FX23
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:124 (120 + 4 Power)
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:15mm, 20mm
- Height Above Board:0.268" (6.80mm)
