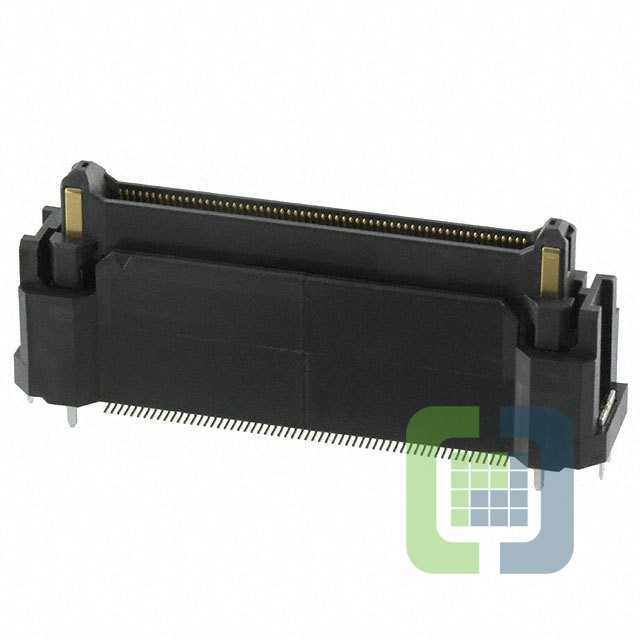

FX23-120P-0.5SV20
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FX23-120P-0.5SV20 Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
- 1$6.08
- 10$5.8368
- 25$5.3504
- 60$5.1072
- 120$4.864
Quote It
Technical Details
- Series:FunctionMax™ FX23
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:124 (120 + 4 Power)
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:20mm, 30mm
- Height Above Board:0.703" (17.85mm)
