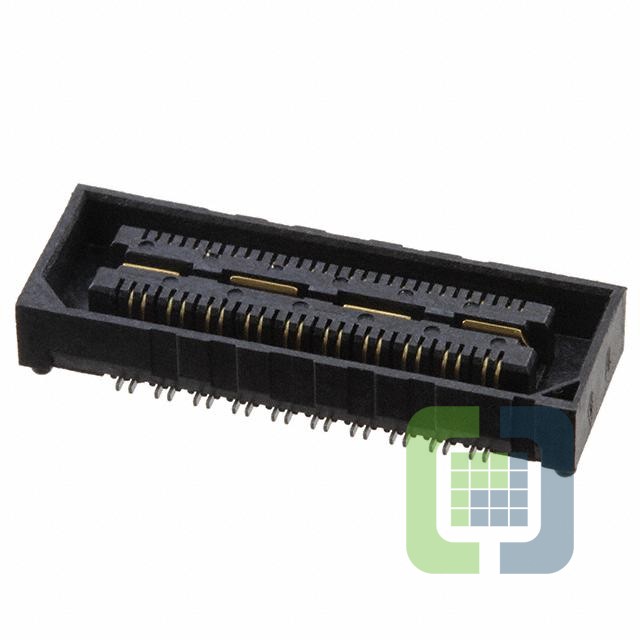

QSH-020-01-L-D-DP-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY RCP 40P SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QSH-020-01-L-D-DP-A-K Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$10.27
- 10$9.50034
- 25$8.98613
- 50$8.5241
- 100$7.95925
- 250$6.93227
- 500$6.6755
- 1,000$6.41875
Quote It
Technical Details
- Series:Q Strip® QSH
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Female
- Number of Positions:40
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board:0.128" (3.25mm)
