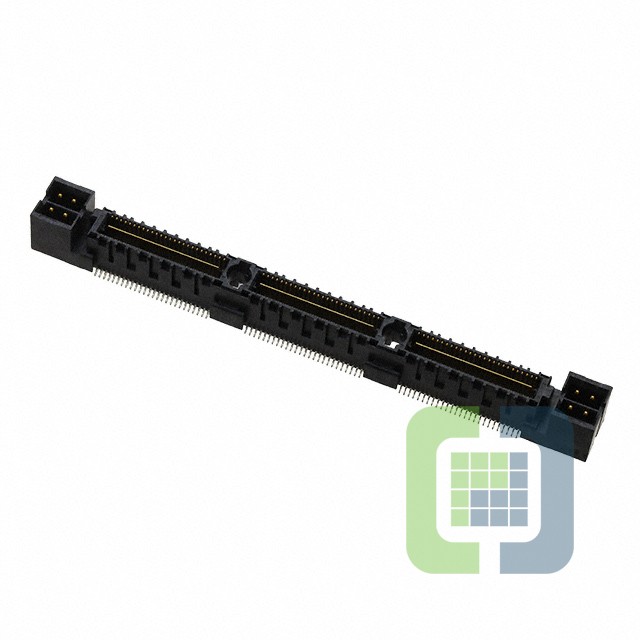

QMS-078-05.75-L-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 156POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QMS-078-05.75-L-D-A Datasheet
-
ECAD Model
- Share
In Stock: 213
Can ship immediately
Pricing:
- 1$20.26
- 10$19.57829
- 25$18.90246
- 50$18.22753
- 100$17.55229
- 250$17.21476
- 500$16.8772
Quote It
Technical Details
- Series:Power Q2™ QMS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:156
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 12mm
- Height Above Board:0.227" (5.76mm)
