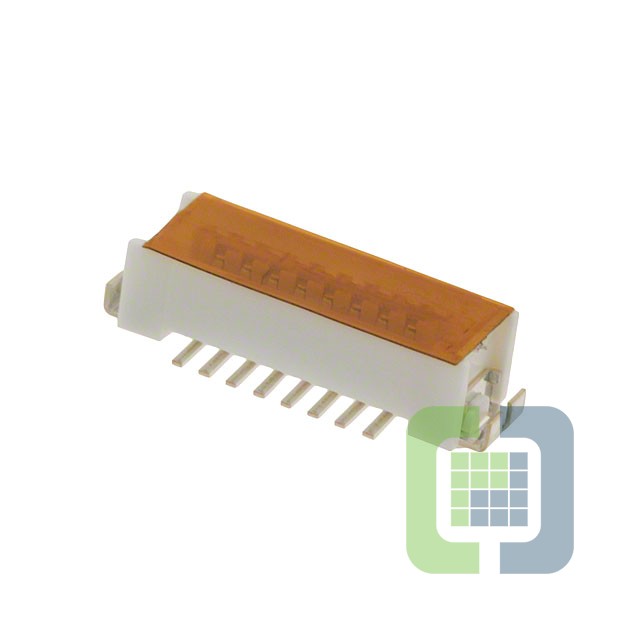

DF9-17P-1V(32)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 17POS SMD TIN
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet DF9-17P-1V(32) Datasheet
-
ECAD Model
- Share
In Stock: 232
Can ship immediately
Pricing:
- 1$1.25
- 1,000$0.672
Quote It
Technical Details
- Series:DF9
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Center Strip Contacts
- Number of Positions:17
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Tin
- Contact Finish Thickness:39.4µin (1.00µm)
- Mated Stacking Heights:4.3mm
- Height Above Board:0.130" (3.30mm)
