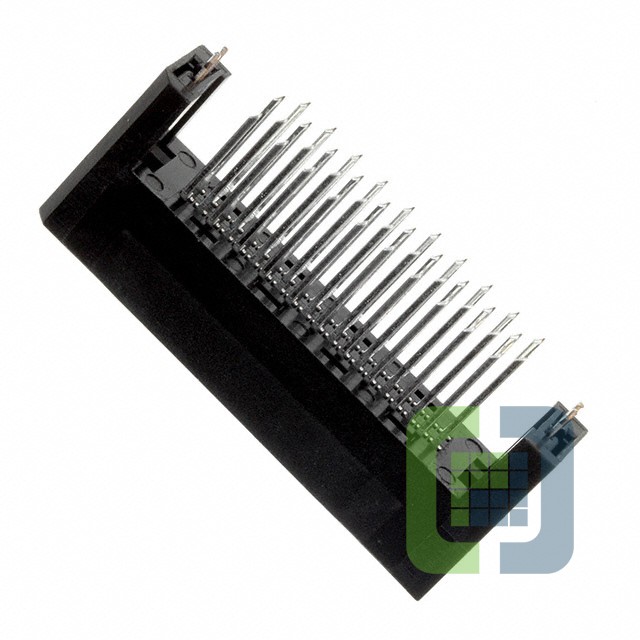

TX25-40P-12ST-H1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 40POS VERT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX25-40P-12ST-H1E Datasheet
-
ECAD Model
- Share
In Stock: 191
Can ship immediately
Pricing:
- 1$1.47
- 10$1.33206
- 25$1.25051
- 50$1.19614
- 100$1.14177
- 250$1.03303
- 720$0.95147
- 1,440$0.81555
- 2,880$0.76118
Quote It
Technical Details
- Series:TX25
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:40
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole
- Features:Board Lock
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:18mm, 22mm, 24mm
- Height Above Board:0.598" (15.20mm)
