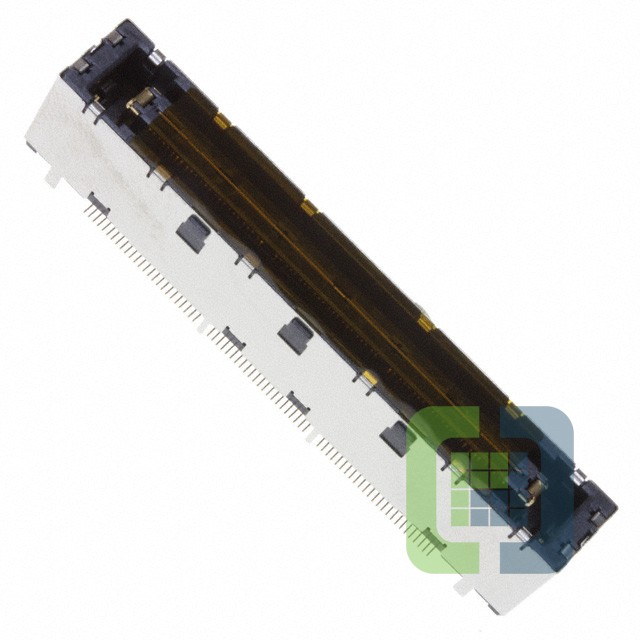

WD2F144WB1R300
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 144POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WD2F144WB1R300 Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$8.74
- 300$6.27033
- 600$5.89032
- 900$5.51029
- 1,500$5.05427
Quote It
Technical Details
- Series:WD2
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:148 (144 + 4 Power)
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:11.8µin (0.30µm)
- Mated Stacking Heights:17.9mm
- Height Above Board:0.457" (11.60mm)
