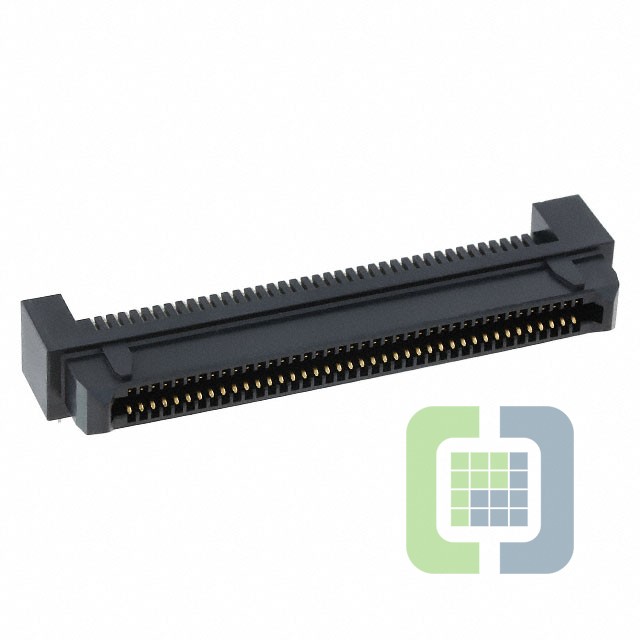

TX24A-80R-LT-H1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 80POS R/A GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX24A-80R-LT-H1E Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$7.22
- 10$6.9211
- 25$6.31927
- 50$6.01835
- 100$5.71743
- 462$5.1156
- 924$4.51376
- 1,386$4.21284
Quote It
Technical Details
- Series:TX24A
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:80
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole, Right Angle
- Features:Board Lock
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:-
- Height Above Board:0.354" (9.00mm)
