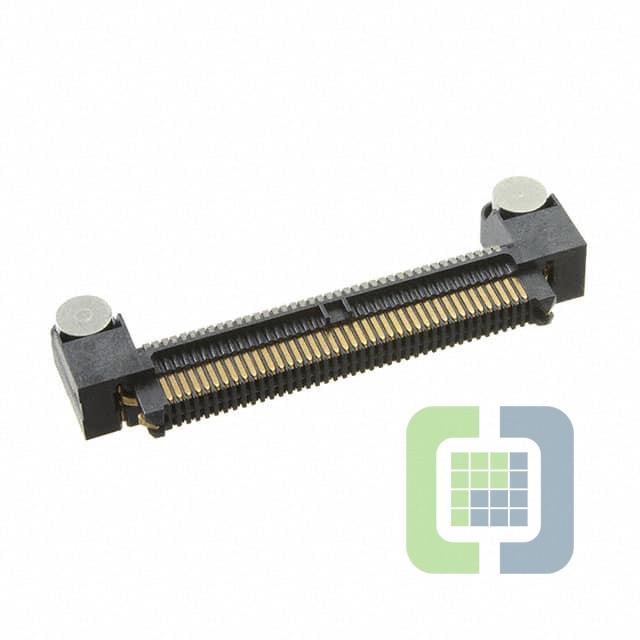

ERM8-040-01-L-D-RA-L-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 80POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet ERM8-040-01-L-D-RA-L-TR Datasheet
-
ECAD Model
- Share
In Stock: 315
Can ship immediately
Pricing:
- 1$11.75
- 200$7.476
- 400$6.942
- 600$6.8085
- 1,000$6.5415
Quote It
Technical Details
- Series:Edge Rate™ ERM8
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Center Strip Contacts
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Board Guide, Latches, Mounting Flange
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:0.246" (6.25mm)
