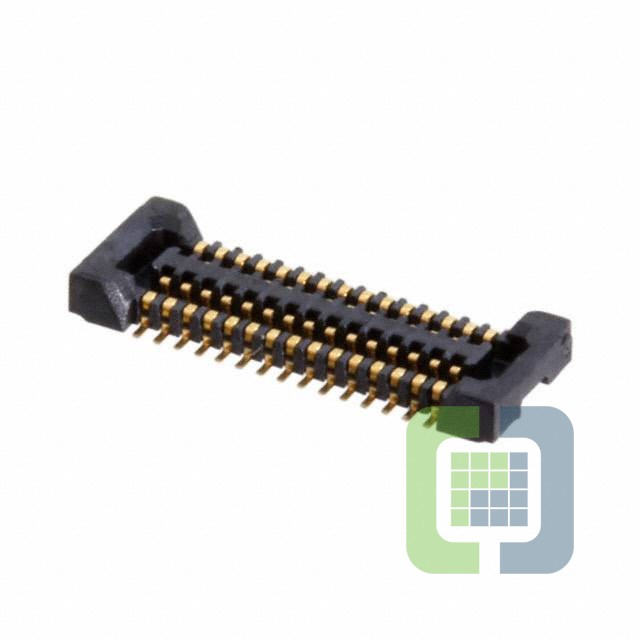

3-2201197-0
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 30POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 3-2201197-0 Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$0.3036
- 40,000$0.3036
Quote It
Technical Details
- Series:Fine Pitch
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:30
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:0.98mm
- Height Above Board:0.038" (0.97mm)
