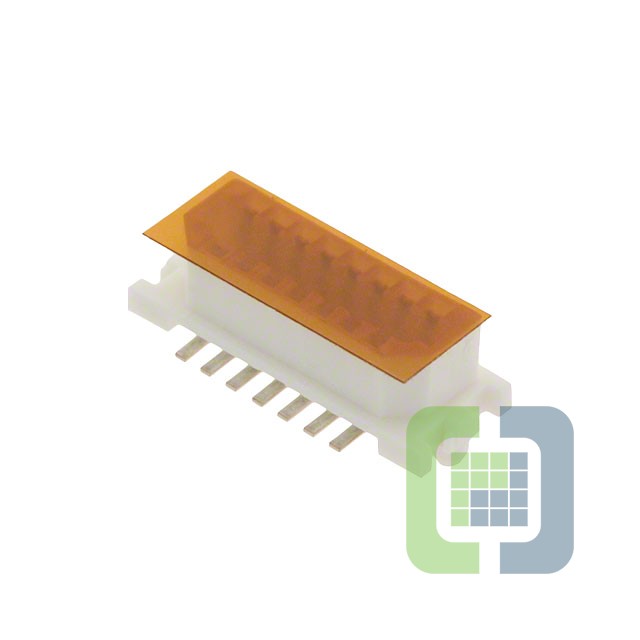

DF9A-15S-1V(22)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 15POS SMD TIN
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet DF9A-15S-1V(22) Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$0.608
- 1,000$0.592
Quote It
Technical Details
- Series:DF9
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Last Time Buy
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:15
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Tin
- Contact Finish Thickness:-
- Mated Stacking Heights:4.3mm
- Height Above Board:0.130" (3.30mm)
