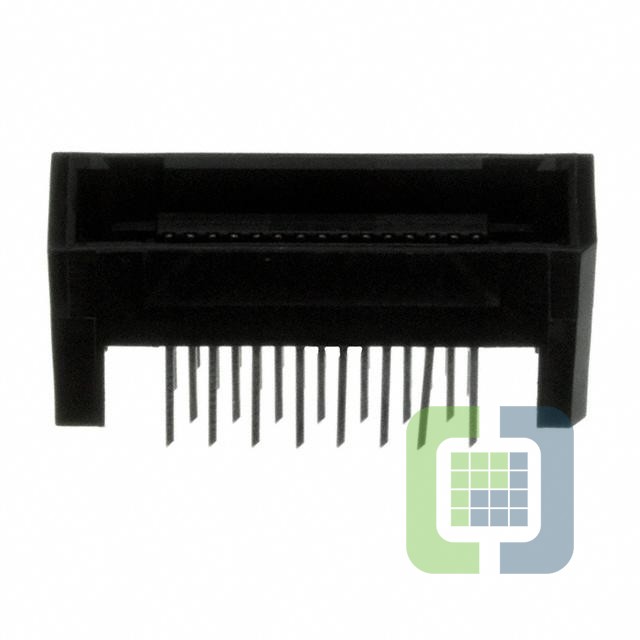

TX25-30P-12ST-N1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 30POS VERT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX25-30P-12ST-N1E Datasheet
-
ECAD Model
- Share
In Stock: 121
Can ship immediately
Pricing:
- 1$0.7
- 840$0.7
Quote It
Technical Details
- Series:TX25
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:30
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:18mm, 22mm, 24mm
- Height Above Board:0.598" (15.20mm)
