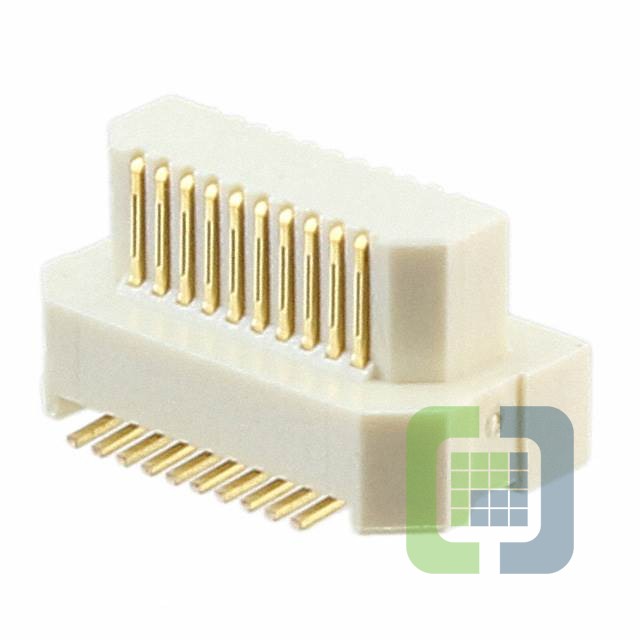

AXK6S20547YG
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXK6S20547YG Datasheet
-
ECAD Model
- Share
In Stock: 155
Can ship immediately
Pricing:
- 1$0.72
- 2,000$0.72
Quote It
Technical Details
- Series:P5KS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:5mm, 5.5mm, 8mm
- Height Above Board:0.169" (4.30mm)
