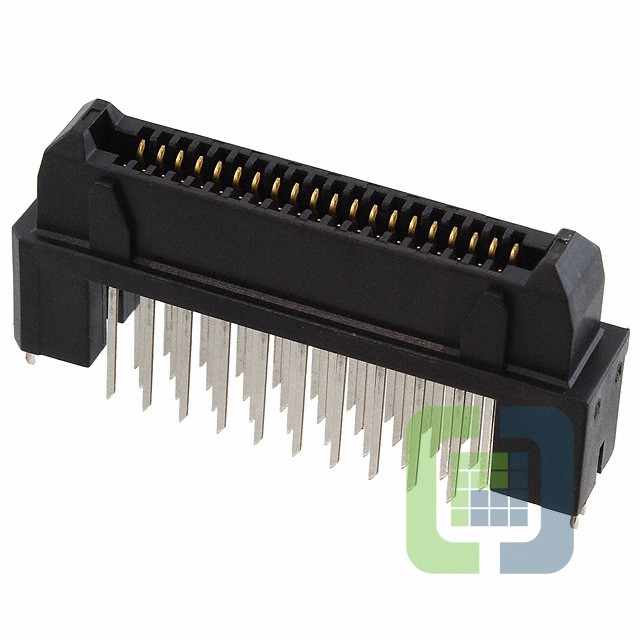

TX24-40R-12ST-E1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 40POS VERT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX24-40R-12ST-E1E Datasheet
-
ECAD Model
- Share
In Stock: 197
Can ship immediately
Pricing:
- 1$1.394
- 792$1.394
Quote It
Technical Details
- Series:TX24
- Package:Tray
- Part Status:Last Time Buy
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole
- Features:Board Lock
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:18mm, 20mm, 24mm
- Height Above Board:0.642" (16.30mm)
