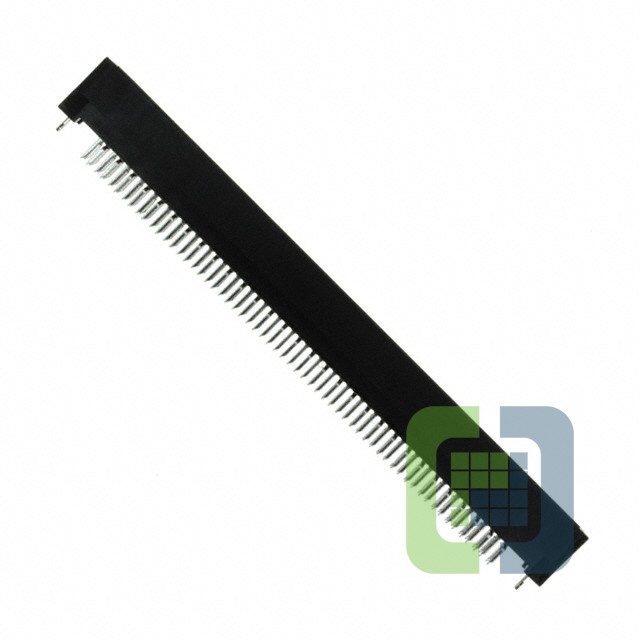

TX25-120P-6ST-H1E
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 120POS VERT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet TX25-120P-6ST-H1E Datasheet
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
- 1$2.38
- 264$2.38
Quote It
Technical Details
- Series:TX25
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Center Strip Contacts
- Number of Positions:120
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole
- Features:Board Lock
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:12mm, 16mm, 18mm
- Height Above Board:0.362" (9.20mm)
