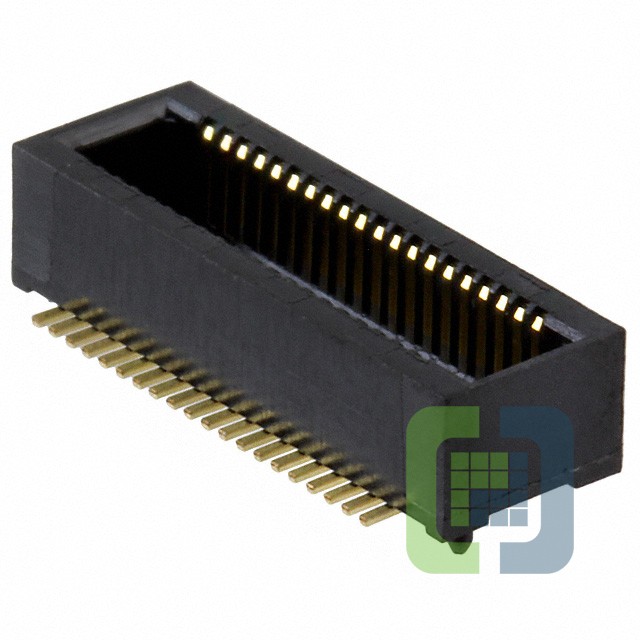

WR-40PB-VF-N1
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 40POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WR-40PB-VF-N1 Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$2.88
- 174$2.88
Quote It
Technical Details
- Series:WR
- Package:Strip
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:4mm, 4.5mm, 7mm
- Height Above Board:0.118" (3.00mm)
