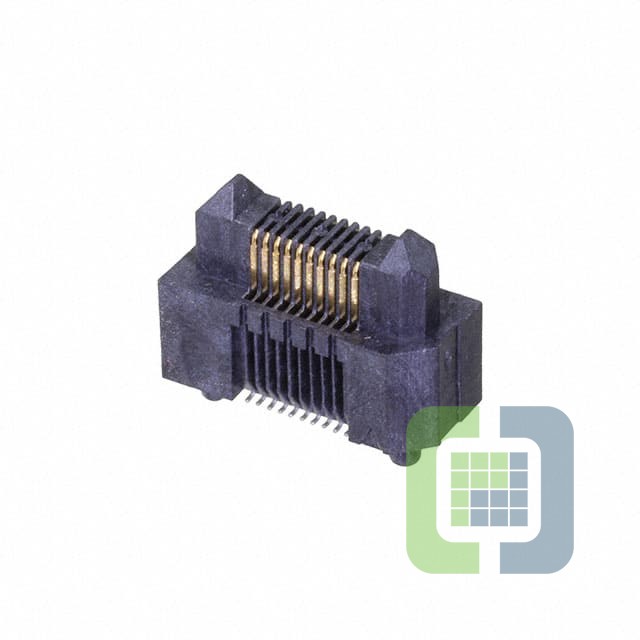

ERM5-010-05.0-L-DV-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
- 1$4.63
- 325$2.77502
- 650$2.59
- 975$2.4975
- 1,625$2.35875
- 3,250$2.3125
Quote It
Technical Details
- Series:Edge Rate™ ERM5
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:10mm, 12mm
- Height Above Board:0.309" (7.85mm)
