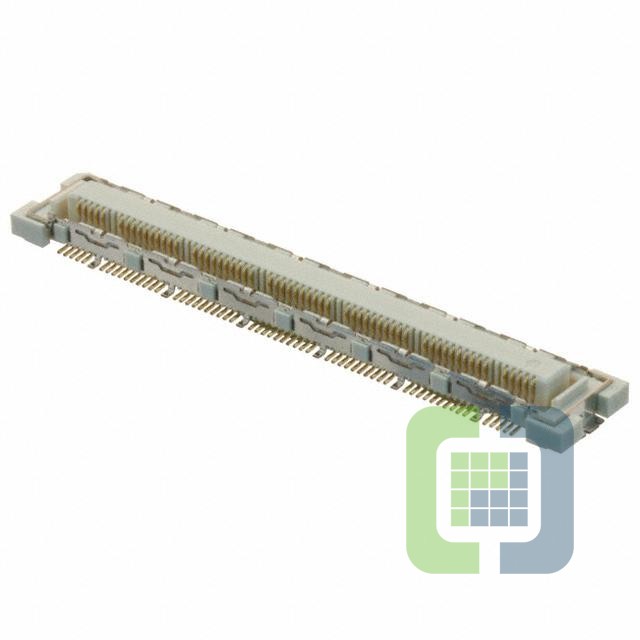

FX10B-120P/12-SV1(91)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet FX10B-120P/12-SV1(91) Datasheet
-
ECAD Model
- Share
In Stock: 173
Can ship immediately
Pricing:
- 1$3.64
- 1,000$3.5815
Quote It
Technical Details
- Series:FunctionMax™ FX10
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Ground Plate, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:5mm
- Height Above Board:0.177" (4.50mm)
