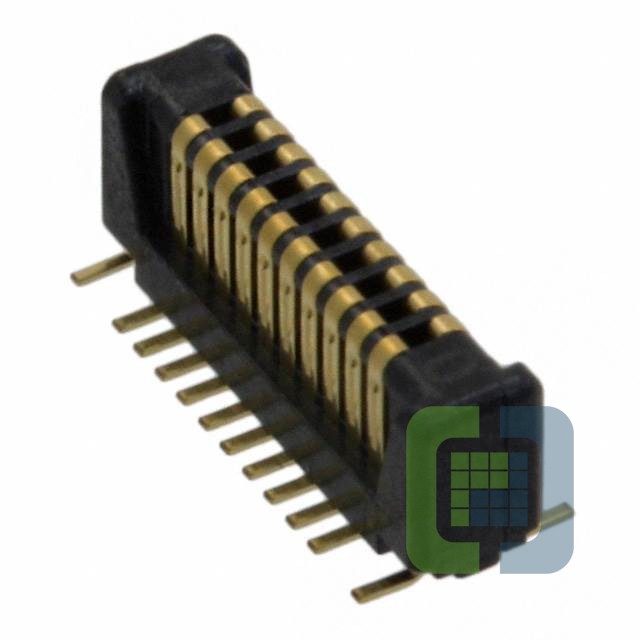

AXT420314
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 20POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet AXT420314 Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
- 1$4.615
- 3,000$4.615
Quote It
Technical Details
- Series:P4S
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header, Center Strip Contacts
- Number of Positions:20
- Pitch:0.016" (0.40mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:-
- Mated Stacking Heights:3mm
- Height Above Board:0.088" (2.23mm)
