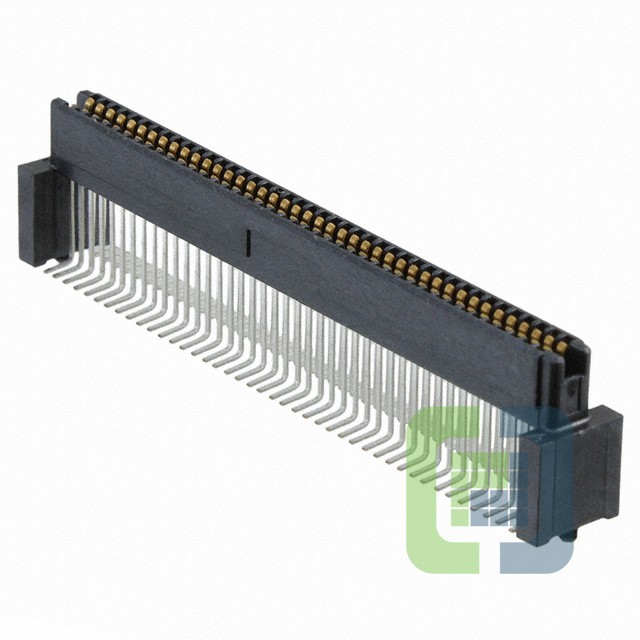

1-5120521-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 84POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1-5120521-2 Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$5.20472
- 1,300$5.0275
Quote It
Technical Details
- Series:Free Height (FH) IEEE 1386, PMC
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:84
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:50.0µin (1.27µm)
- Mated Stacking Heights:8mm, 9mm, 10mm
- Height Above Board:0.212" (5.38mm)
