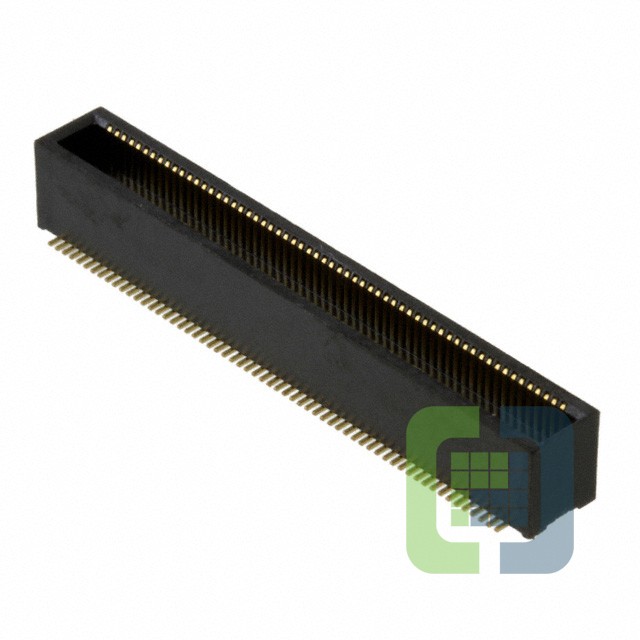

WR-120P-VF60-N1
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 120POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet WR-120P-VF60-N1 Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$7.25796
- 93$7.25796
Quote It
Technical Details
- Series:WR
- Package:Strip
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:3.94µin (0.10µm)
- Mated Stacking Heights:6mm, 6.5mm, 9mm
- Height Above Board:0.197" (5.00mm)
