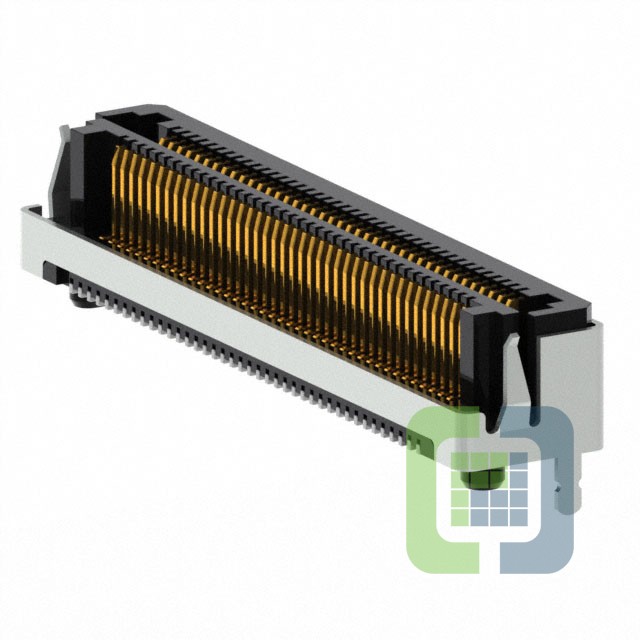

LSHM-140-03.0-L-DV-A-S-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SELF-MATE 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 158
Can ship immediately
Pricing:
- 1$7.49272
- 125$6.08986
Quote It
Technical Details
- Series:Razor Beam™ LSHM
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Self Mating, Non-Gendered
- Number of Positions:80
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Shielded
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:5.5mm, 6mm, 7mm, 9mm
- Height Above Board:0.175" (4.45mm)
