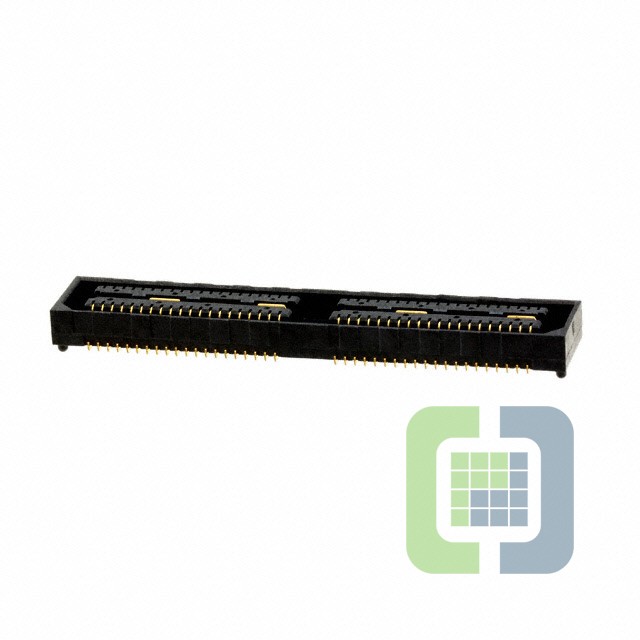

1658043-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 80POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1658043-2 Datasheet
-
ECAD Model
- Share
In Stock: 157
Can ship immediately
Pricing:
- 1$7.67397
- 280$7.67397
Quote It
Technical Details
- Series:MICTOR SB
- Package:Tray
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:80
- Pitch:0.031" (0.80mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:Flash
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 22mm, 25mm, 30mm
- Height Above Board:0.128" (3.25mm)
