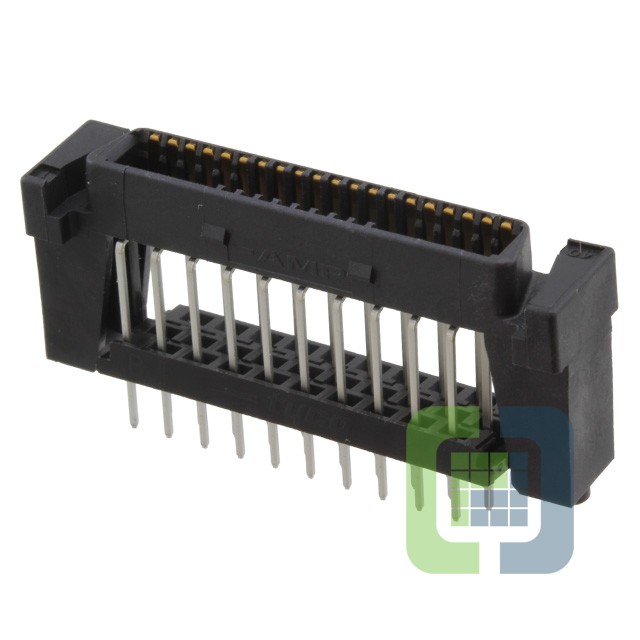

5176378-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 40POS VERT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5176378-1 Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$8.20992
- 1,560$7.81722
Quote It
Technical Details
- Series:Free Height (FH)
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Outer Shroud Contacts
- Number of Positions:40
- Pitch:0.050" (1.27mm)
- Number of Rows:2
- Mounting Type:Through Hole
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:11.8µin (0.30µm)
- Mated Stacking Heights:18mm
- Height Above Board:0.610" (15.50mm)
