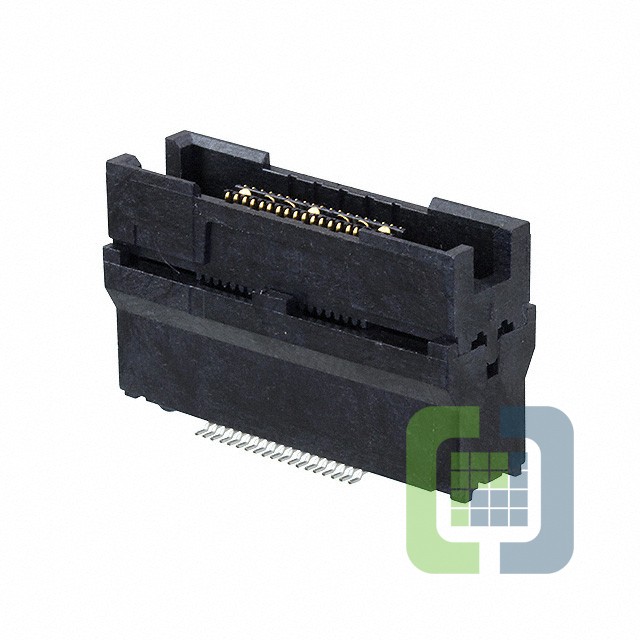

5767094-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 38P SMD PALLAD-NICKEL
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5767094-1 Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
- 1$13.68766
- 21$12.35878
- 42$11.84074
- 63$11.10082
- 105$10.73072
- 252$10.13869
- 504$9.84266
Quote It
Technical Details
- Series:MICTOR
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:38
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Palladium-Nickel
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:15.62mm, 18mm, 20mm, 21.6mm, 27mm, 27.8mm, 29mm, 31.9mm
- Height Above Board:0.587" (14.91mm)
