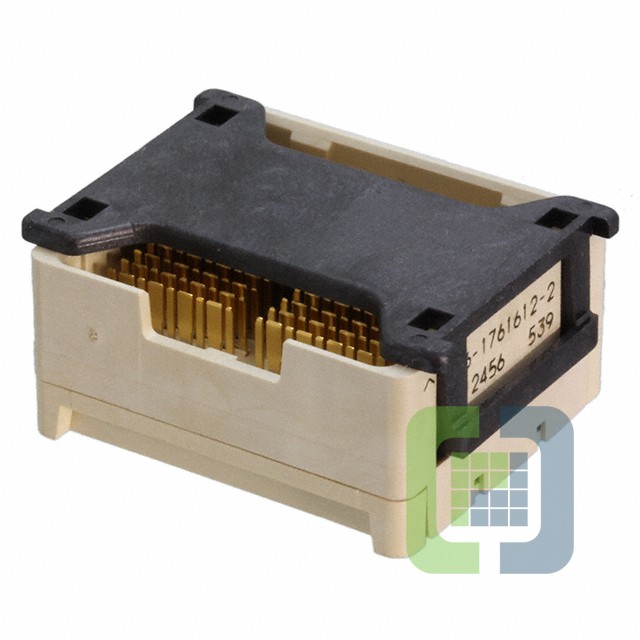

6-1761612-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY PLUG 104POS SMD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 6-1761612-2 Datasheet
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
- 1$14.07887
- 120$14.07887
Quote It
Technical Details
- Series:STEP-Z
- Package:Tray
- Part Status:Active
- Connector Type:Differential Pair Array, Male
- Number of Positions:104 Signal (52 Pair)
- Pitch:0.051" (1.30mm)
- Number of Rows:18
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:17mm, 23mm, 27mm
- Height Above Board:0.510" (12.95mm)
