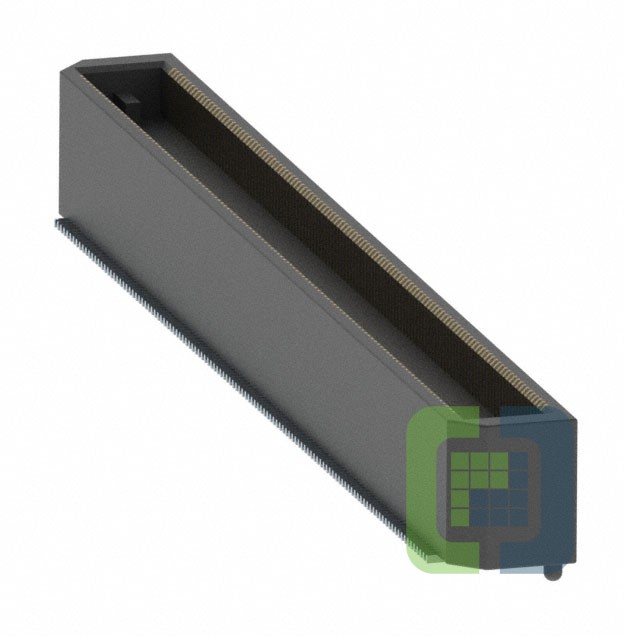

BTH-120-02-C-D-A-K-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 240POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BTH-120-02-C-D-A-K-TR Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
- 1$14.12587
- 125$11.78897
Quote It
Technical Details
- Series:BTH
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:240
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:50.0µin (1.27µm)
- Mated Stacking Heights:8mm
- Height Above Board:0.286" (7.26mm)
