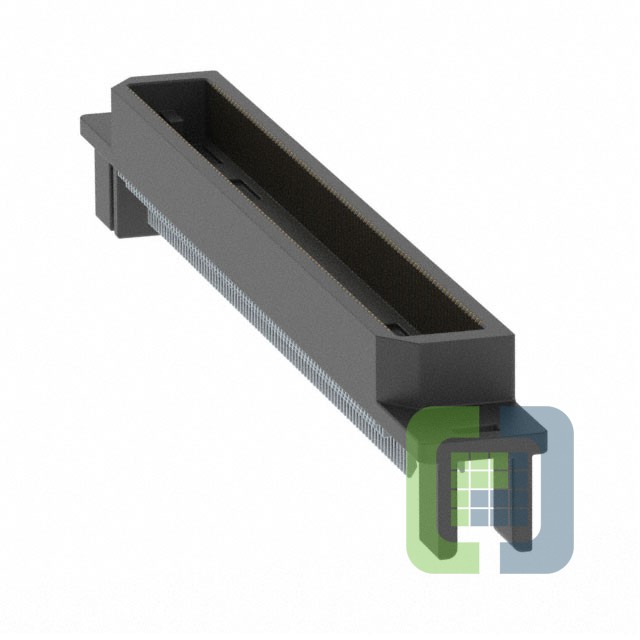

BTH-090-01-L-D-EM2
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 180POS EDGE MNT GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BTH-090-01-L-D-EM2 Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$14.39889
- 500$14.20467
Quote It
Technical Details
- Series:BTH
- Package:Tube
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:180
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Board Edge, Straddle Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:-
- Height Above Board:-
