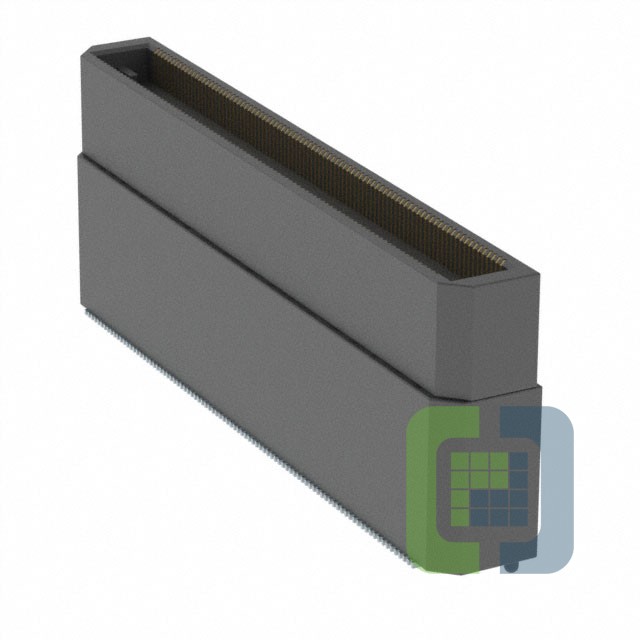

BTH-090-05-F-D-A
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 180POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BTH-090-05-F-D-A Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
- 1$14.73182
Quote It
Technical Details
- Series:BTH
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:180
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:19mm
- Height Above Board:0.718" (18.24mm)
