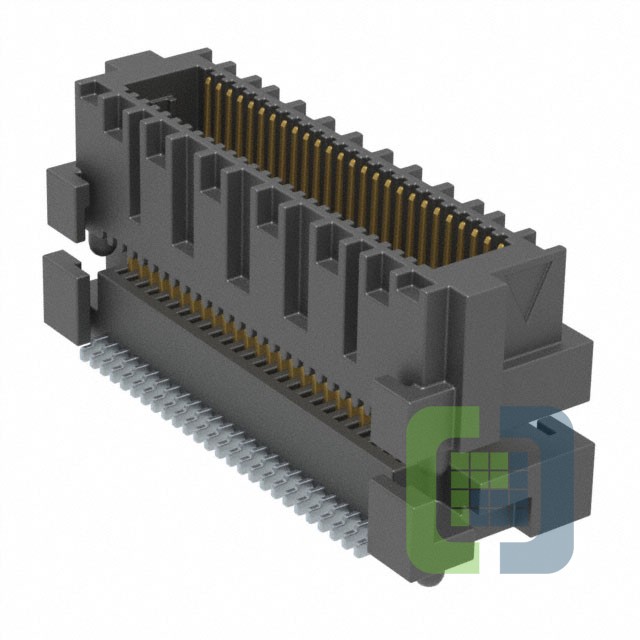

QMS-026-09.75-SL-D-A-K
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 52POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet QMS-026-09.75-SL-D-A-K Datasheet
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$14.89
Quote It
Technical Details
- Series:Power Q2™ QMS
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:52
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane), Pick and Place
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:14mm, 16mm
- Height Above Board:0.368" (9.35mm)
