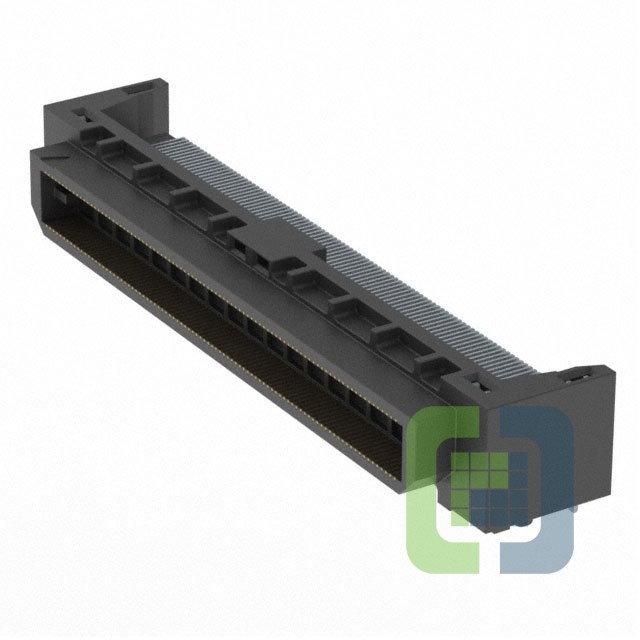

BTH-090-01-F-D-RA-WT
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 180POS R/A SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BTH-090-01-F-D-RA-WT Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$15.07667
Quote It
Technical Details
- Series:BTH
- Package:Tray
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:180
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount, Right Angle
- Features:Solder Retention
- Contact Finish:Gold
- Contact Finish Thickness:3.00µin (0.076µm)
- Mated Stacking Heights:-
- Height Above Board:0.348" (8.84mm)
