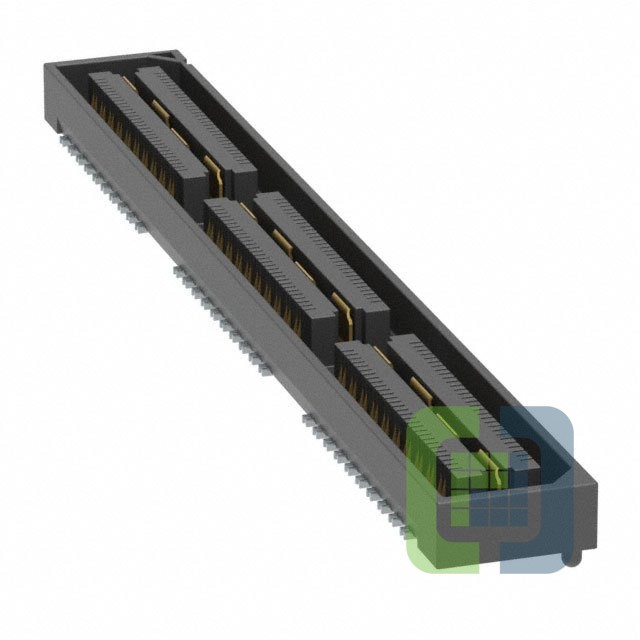

QSH-060-01-C-D-DP-TR
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN DIFF ARRAY RCPT 120POS SMD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$15.1197
- 200$14.56925
Quote It
Technical Details
- Series:Q Strip® QSH
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Differential Pair Array, Female
- Number of Positions:120
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:50.0µin (1.27µm)
- Mated Stacking Heights:5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board:0.128" (3.25mm)
