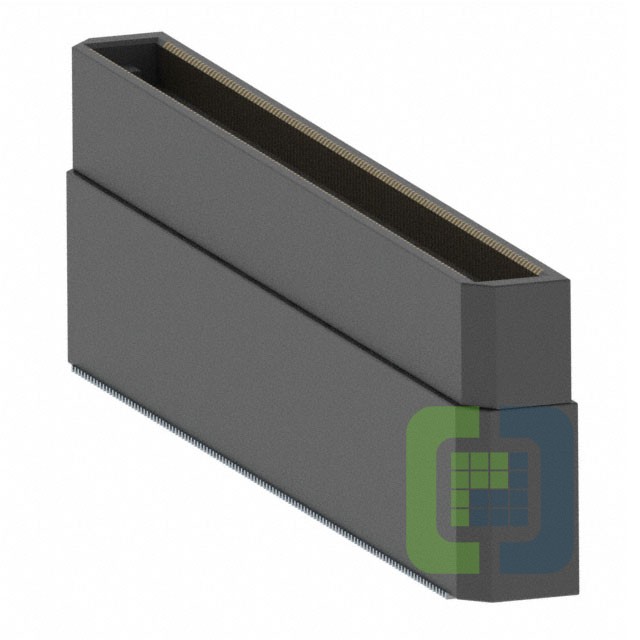

BTH-120-05-L-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 240POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet BTH-120-05-L-D Datasheet
-
ECAD Model
- Share
In Stock: 140
Can ship immediately
Pricing:
- 1$19.88125
- 500$19.88125
Quote It
Technical Details
- Series:BTH
- Package:Tube
- Part Status:Active
- Connector Type:Header, Outer Shroud Contacts
- Number of Positions:240
- Pitch:0.020" (0.50mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:-
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
- Mated Stacking Heights:19mm
- Height Above Board:0.718" (18.24mm)
