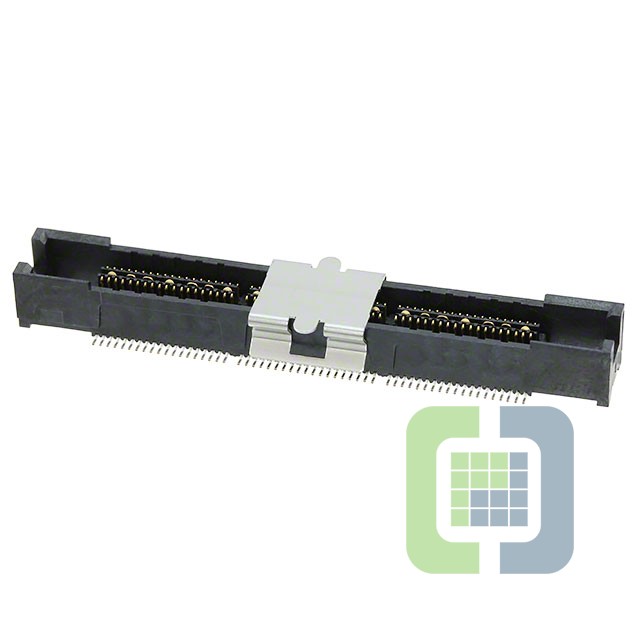

1-5767096-0
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 114POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 1-5767096-0 Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$32.57358
- 500$32.186
Quote It
Technical Details
- Series:MICTOR
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:114
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
- Height Above Board:0.236" (6.00mm)
