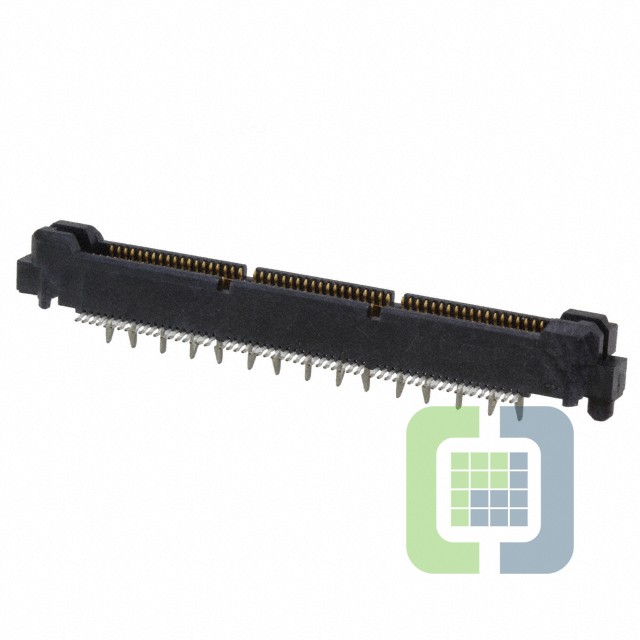

5767056-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG 114P SMD PALLAD-NICKEL
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 5767056-3 Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$36.4859
- 810$35.24356
Quote It
Technical Details
- Series:MICTOR
- Package:Tube
- Part Status:Active
- Connector Type:Plug, Outer Shroud Contacts
- Number of Positions:114
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Palladium-Nickel
- Contact Finish Thickness:5.00µin (0.127µm)
- Mated Stacking Heights:6.6mm, 15.62mm
- Height Above Board:0.251" (6.38mm)
