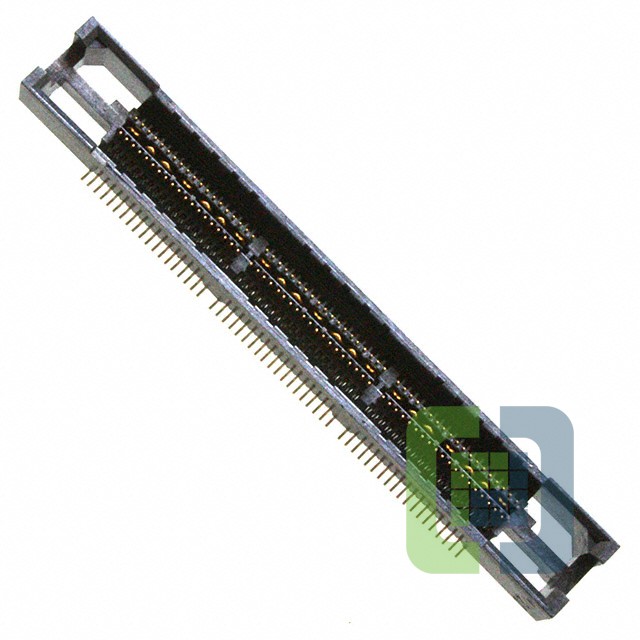

2-5767004-4
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 114POS SMD GOLD
- CategoryRectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Datasheet 2-5767004-4 Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$44.26
- 10$39.9572
- 30$38.28205
- 50$35.88942
- 100$34.69311
- 250$32.77903
Quote It
Technical Details
- Series:MICTOR
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle, Center Strip Contacts
- Number of Positions:114
- Pitch:0.025" (0.64mm)
- Number of Rows:2
- Mounting Type:Surface Mount
- Features:Board Guide, Ground Bus (Plane)
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
- Mated Stacking Heights:6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm
- Height Above Board:0.236" (6.00mm)
